MSXP Series

Price:

0.00 €


MSXP 16060
MSXP 16060
Quote Now

MSXP Series

https://www.iac-instruments.com/web/image/product.template/1351/image_1920?unique=38f2dc9

- Measuring machine with granite bed of 900x350mm
- Industrial Control Computer
- keyboard, mouse, flat screen
- Interface box with cables
- Click’On Removal Tool
- Master Scan LINUX Software Package Multi Language
- IACLIB, Extensive tolerance library
- Calibration Certificate

Quote Now

Not Available For Sale


  • Max. Scan Length
  • Max. Diameter
  • Temperature Compensation

This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

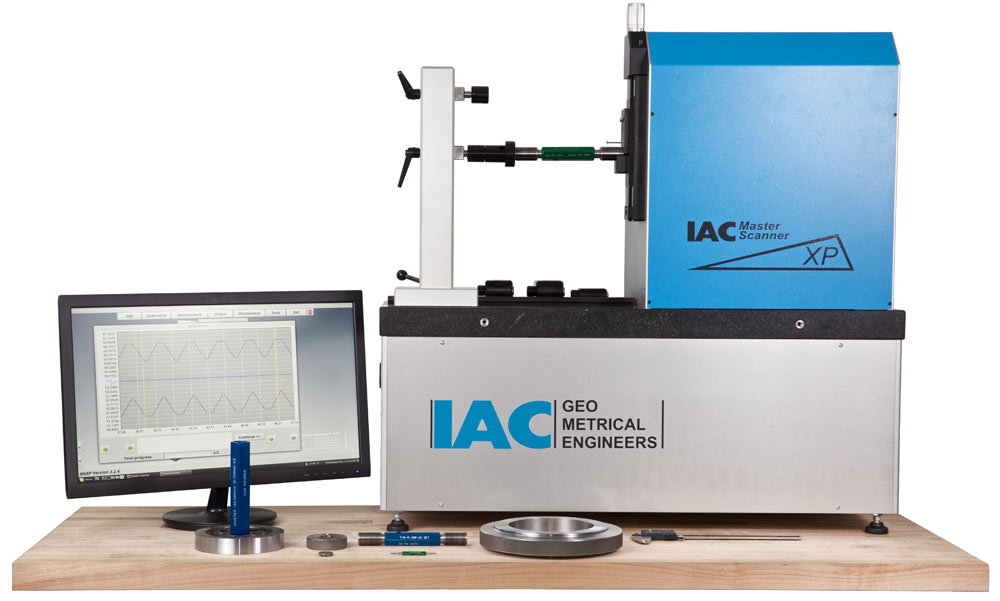

Masterscanner MSXP Series Full-automated measurement, without human intervention, the machine displays all measured thread parameters per pitch in under 2 minutes. All measured values are compared with the built-in thread standards library, the system generates the measuring report automatically. The MasterScanner significantly reduces human error, as well as improves the measuring efficiency, quality, consistency and accuracy of the results. The MasterScanner is compliant with all requirements
for tractability of today as stated in ISO-9000 and ISO/IEC 17025:2017.

Get all parameters of cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges and other gauges with internal & external dimensions, including virtual pitch diameter , single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half of thread angle, flank straightness, lead angle, taper, perpendicularity, etc.

Floorplan_Dimensions_MSXP.pdf
Download
IAC-Brochure-MasterScanner-XP Series-(English).pdf
Download
MEASURING UNCERTAINTY:
MSXP MODELS60256060100251006016060
Thread ring gauges, parallel or tapered (minor diameter > 10mm, partial flank angles ≥ 27º)
Minor diameter2,0 μm + 5.10-6·ι2,5 μm + 5.10-6·ι2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Effective pitch diameter2,0 μm + 5.10-6·ι2,5 μm + 5.10-6·ι2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”0°6’0”0°6’0”0°6’0”
Taper0,1°0,1°0,1°0,1°0,1°
Thread ring gauges, parallel or tapered (minor diameter 2,5 to 10 mm, partial flank angles ≥ 27º)
Minor diameter2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι
Effective pitch diameter2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”0°6’0”0°6’0”0°6’0”
Taper0,1°0,1°0,1°0,1°0,1°
Thread plug gauges, parallel or tapered (major diameter > 1 mm, partial flank angles ≥ 27º)
Minor diameter2,0 μm + 5.10-6·ι2,5 μm + 5.10-6·ι2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Effective pitch diameter2,0 μm + 5.10-6·ι2,5 μm + 5.10-6·ι2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”0°6’0”0°6’0”0°6’0”
Taper0,1°0,1°0,1°0,1°0,1°
Plain gauges, parallel or tapered (Diameter > 10 mm / 0,4 in)
Plain ring gauge1,0 μm + 5.10-6·ι1,5 μm + 5.10-6·ι1,5 μm + 5.10-6·ι2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι
Plain plug gauge1,0 μm + 5.10-6·ι1,5 μm + 5.10-6·ι1,5 μm + 5.10-6·ι2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι
Taper0,1°0,1°0,1°0,1°0,1°
Plain cylindrical or Taper gauge (Diameter from 1mm to 10mm)
Plain ring gauge2,0 μm + 5.10-6·ι2,5 μm + 5.10-6·ι2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Plain plug gauge2,0 μm + 5.10-6·ι2,5 μm + 5.10-6·ι2,5 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Taper0,1°0,1°0,1°0,1°0,1°

/
