MSXP Series
- Külső mérési tartomány: 1,0~50/90 mm (modelltől függően)
- Belső mérési tartomány: 2,5~60/100 mm (modelltől függően)
- Max. mérési hossz: 25 mm vagy 60 mm (modelltől függően)
- Min. menetemelkedés: 0,1 mm
- Súly: 150 kg
- 900x350 mm-es gránitágy
- Vízszintes/függőleges vezetés: Precíziós légcsapágy
- Meghajtás típusa: Svájci kefe nélküli motor
- Mérőrendszer: Heidenhain inkrementális lineáris útmérő rendszer
- Felbontás: 0,01 μm
- Interfészdoboz kábelekkel
- Click'On gyorscserélő rendszer,
- Ipari vezérlő számítógép
- billentyűzet, egér, síkképernyő
- A megvásárolt etalonok kalibrációs tanúsítványai
- A géptengelyek lézerkalibrációs tanúsítványai
- MSProg LINUX szoftvercsomag (többnyelvű)
- IACLIB, standard tűréshatár-könyvtár
- 1 év garancia a vevő általi ellenőrzés és elfogadás után
- 1 év ingyenes MSProg frissítés és megvásárolt modulok
This content will be shared across all product pages.

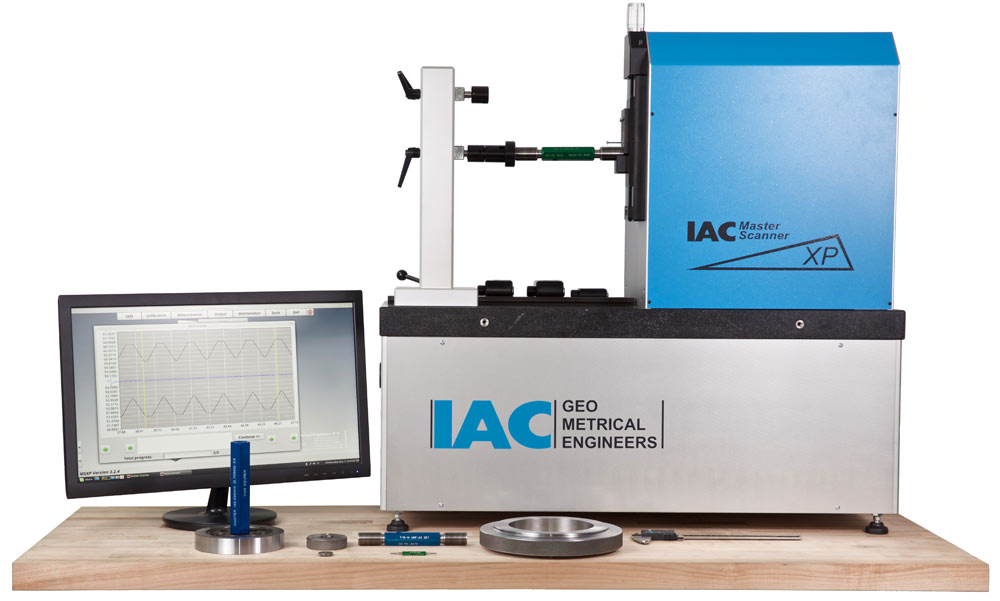

Introducing the Masterscanner MSXP Series, a fully automated measurement solution that operates without any human involvement. In less than two minutes, the machine provides a comprehensive display of all measured thread parameters for each pitch. The system automatically generates a measurement report by comparing the collected data against its integrated library of thread standards. The MasterScanner minimizes the potential for human error while enhancing measurement efficiency, quality, consistency, and accuracy. It adheres to all traceability requirements outlined in ISO-9000 and ISO/IEC 17025:2017.
Obtain detailed measurements for cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges, and various other gauges with internal and external dimensions. This includes virtual pitch diameter, single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half thread angle, flank straightness, lead angle, taper, perpendicularity, and more.
