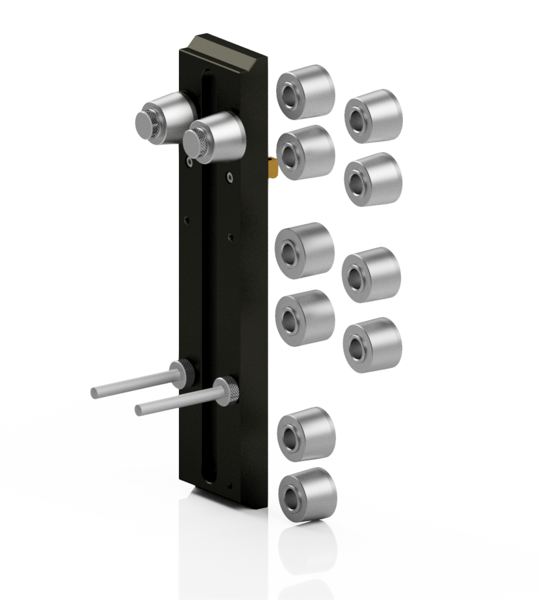

CLICKON - COSIMEX-SMALL - XP DUO BASE PLATE SYSTEM

https://www.iac-instruments.com/web/image/product.template/7/image_1920?unique=10508fa

(internal 65 mm -160 mm) (external 40 mm-155 mm) Incl. 6 Adapters sets for Cylindrical + Conical

Quote Now

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    The COSIMEX support plugs and rings clickon is designed to support  a mid-size range to large gages, and support internal and external measurements (Plugs & Rings).  With precision polished backplate assures that the ring/plugs lays flat against the backplate.
    The Cosimex comes with a variety of adapters for Cylindrical and Conical/ Taper gauges which are used to center and align the thread gauges over the length of the gage, thus improving stability without tilting, during calibration and avoiding that the product lays oblique by human-error.

    Product accurate placement is consistent which especially for Taper rings or plug benefits enormously by these conical shaped adapters

    Diameter Range:

    ⌀100 mm – ⌀160 mm (Ring gages), ⌀95mm – ⌀150 mm (Plug gauges)

    Type of Measurement:

    Internal (Ring gages) and External (Plug gauges)

    Type of Thread:

    Conical, Taper, Metrical, Trapezodial, Sawtooth, Edison, Plain

    Type of Product Centering:

    Product aligning by Cylindrical or several Conical adapters

    Accessoires: (pair of)

    Cylindrical adapters
    Conical 1:4 mm/mm – 3 in/ft
    Conical 1:6 mm/mm – 2 in/ft
    Conical 1:8 mm/mm – 1.5 in/ft
    Conical 1:16 mm/mm – 0.75 in/ft
    Conical 5:48 mm/mm – 1.25 in/ft

    Probes Sizes:

    All Probes.

    Reference Plain Gauge:

    Is compatible on this Clickon Support

    Interchangeable with:

    MSXP16060 only model, All XPL-C models, All XPL models

    Calibration Certificate:

    not available.

    Extra Software Module:

    Included in the Standard Software Package that comes with the MasterScanner

    Dimensions:

    155x50x40mm

    Weight:

    700 grams (g)

    Note:

    Conical Adapter sets can be purchased separately ( a set is 2 barrels of a certain size)
