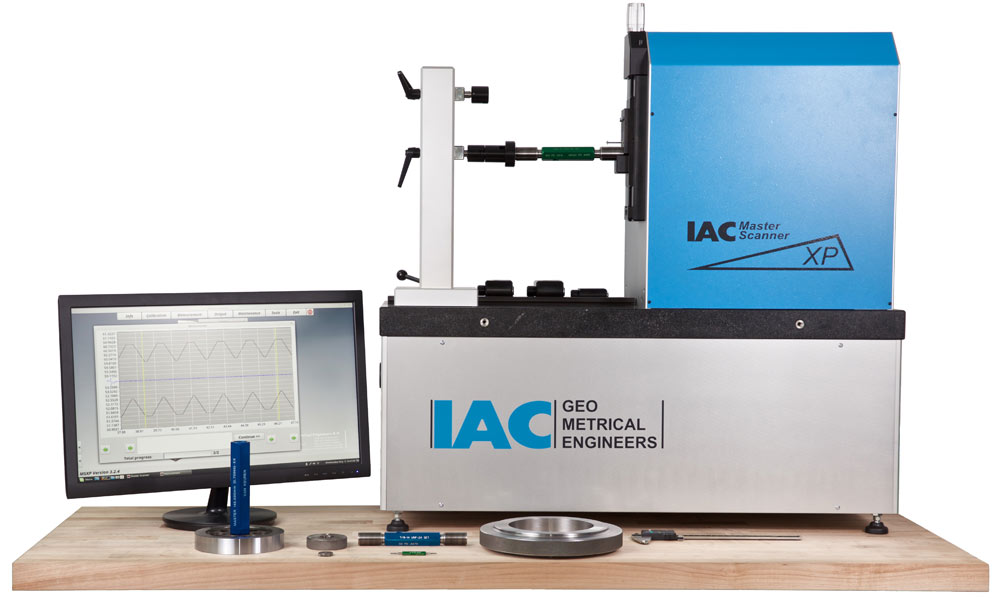

MSXP Series
- Externer Messbereich: 1,0–50/90 mm (modellabhängig)
- Interner Messbereich: 2,5–60/100 mm (modellabhängig)
- Max. Messlänge: 25 mm oder 60 mm (modellabhängig)
- Min. Gewindesteigung: 0,1 mm
- Gewicht: 150 kg
- Granitbett (900 x 350 mm)
- Horizontale/Vertikale Führung: Präzisions-Luftlager
- Antriebsart: Schweizer bürstenloser Motor
- Messsystem: Heidenhain Inkremental-Linear-Encoder-System
- Auflösung: 0,01 μm
- Schnittstellenbox mit Kabeln
- Click'On Schnellwechselsystem
- Industrieller Steuerungsrechner
- Tastatur, Maus, Flachbildschirm
- Kalibrierzertifikate der erworbenen Normale
- Laserkalibrierzertifikate der Maschinenachsen
- MSProg LINUX Softwarepaket (mehrsprachig)
- IACLIB, Standard-Toleranzbibliothek
- 1 Jahr Garantie nach Abnahme durch den Kunden
- 1 Jahr kostenlose Updates das MSProg und gekaufte Module
Dieser Inhalt wird auf allen Produktseiteb angezeigt.
Introducing the Masterscanner MSXP Series, a fully automated measurement solution that operates without any human involvement. In less than two minutes, the machine provides a comprehensive display of all measured thread parameters for each pitch. The system automatically generates a measurement report by comparing the collected data against its integrated library of thread standards. The MasterScanner minimizes the potential for human error while enhancing measurement efficiency, quality, consistency, and accuracy. It adheres to all traceability requirements outlined in ISO-9000 and ISO/IEC 17025:2017.
Obtain detailed measurements for cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges, and various other gauges with internal and external dimensions. This includes virtual pitch diameter, single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half thread angle, flank straightness, lead angle, taper, perpendicularity, and more.
